Camaro ZL1 Features Technically Advanced 6.2L Supercharged V-8

27.February, 2011 @12:02     Tech News

The all-new, 2012 Chevrolet Camaro ZL1 is powered by the LSA 6.2L supercharged V-8 engine that produces an estimated 550 horsepower (410 kW) and 550 lb.-ft. of torque (745 Nm).

The LSA is the most powerful engine ever offered in a Camaro, eclipsing even the original ZL1 engine from 1969 that inspired the name of the new, maximum-performance model. Built on GM’s legendary small-block V-8 architecture, it features an intercooled supercharger system, premium heat-resistant aluminum cylinder heads and other details designed to ensure its exceptional performance is delivered with smoothness and refinement.

“The LSA is the ultimate engine for the ultimate Camaro,” said John Rydzewski, assistant chief engineer for small-block engines. “It has a broad power band that matches the Camaro ZL1’s performance capabilities at every notch on the tachometer.”

Components and design elements that contribute to the LSA’s performance include:

  • Balanced, lightweight reciprocating assembly
  • High-strength hypereutectic pistons
  • Sixth-generation Eaton supercharger with four-lobe rotors
  • Center-feed fuel system
  • Piston oil squirters.

A Tremec TR6060 six-speed manual transmission is matched with the LSA. It uses a 240-mm dual-mass flywheel matched with a 240-mm twin-disc clutch system to provide excellent shift smoothness.

Compared to the Cadillac application, the LSA used in the Camaro features the following unique components and details:

  • Black intercooler housing with unique heat exchanger and plumbing to accommodate the Camaro engine compartment
  • Cast stainless steel exhaust manifolds for enhanced thermal management
  • Camaro-specific oil pan
  • Revised accessory drive with unique alternator and air conditioning compressor
  • Idler pulley in place of the conventional power steering pump pulley, because of the use of electric power steering
  • Special engine cover in red.

Supercharged power delivery
The LSA engine’s sixth-generation Eaton supercharger, with high-helix, four-lobe rotors, enables a broad range of power through the rpm band, giving the engine great low-end torque and excellent horsepower at higher rpm.

“The design of the supercharger’s rotating internal components extends its effective range, giving the engine a wide, flat power band that is usable at all rpm levels,” said Rydzewski, assistant chief engineer. “Whether at low speeds or on the highway, the feeling of power is instant, strong and sustained.”

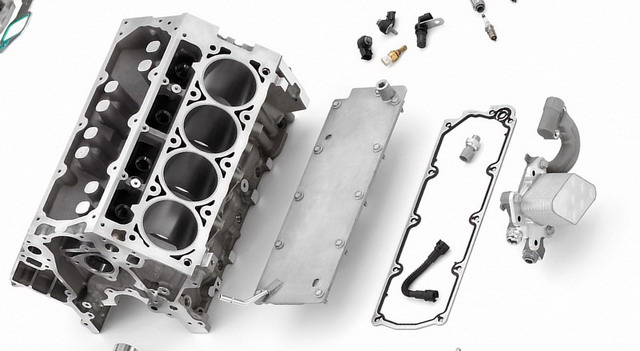

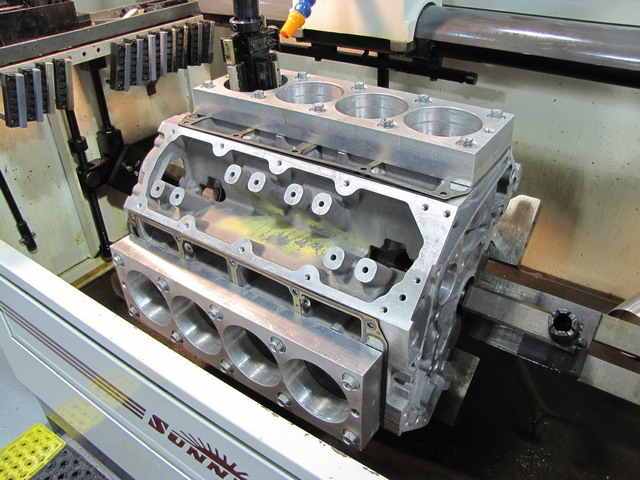

Heavy-duty and lightweight reciprocating components support the engine’s high-rpm, supercharged performance. The parts are housed in an aluminum cylinder block that features nodular iron, six-bolt main caps. Cast iron cylinder liners – measuring 4.06 inches (103.25 mm) in bore diameter – are inserted in the aluminum block and they are finish-bored and honed with a deck plate installed. The deck plate simulates the pressure and minute dimensional variances applied to the block when the cylinder heads are installed, ensuring a higher degree of accuracy that promotes maximum cylinder head sealing, piston ring fit and overall engine performance.

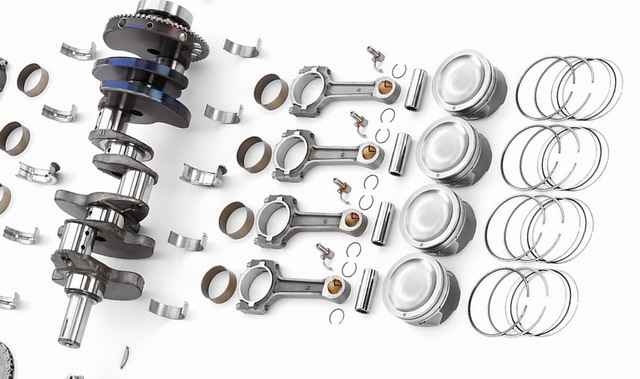

Nestled inside the LSA’s deep-skirted cylinder block is a forged steel crankshaft that delivers a 3.62-inch (92 mm) stroke. It features an eight-bolt flange – the outer face of the crankshaft on which the flywheel is mounted – that provides enhanced clamping strength. Other non-supercharged GM 6.2L engines have a six-bolt flange. A torsional damper mounted to the front of the crankshaft features a keyway and friction washer, which is designed to support the engine’s high loads.

Connected to the crankshaft is a set of lightweight powder-metal connecting rods and hypereutectic pistons, which, when combined with the cylinder heads, delivers a 9.1:1 compression ratio. The alloy of the pistons was selected for its strength and heat resistance properties, while the cast design provides inherent quieting advantages over other piston materials, such as forged aluminum.

Exceptional airflow
High-flow cylinder heads based on GM’s proven L92 design channel incoming air into the combustion chambers. They are made with a premium A356T6 alloy that offers excellent heat resistance, particularly in the bridge area of the cylinder head, between the intake and exhaust valves. Additionally, each head is manufactured with a roto-casting method.

Also known as spin casting, the roto-casting process involves pouring the molten alloy into a rotating mold, for a more even distribution of the material that virtually eliminates porosity – air bubbles or pockets trapped in the casting – for a stronger finished product.

For optimal combustion, the cylinder heads feature swirl-inducing wings cast into the intake ports, improving the mixture motion of the pressurized air/fuel charge. The gatekeepers of the heads’ combustion chambers are large-diameter, 2.16-inch (55 mm) intake valves and 1.59-inch (40.4 mm) exhaust valves. The intake valves are made of steel and feature thick heads. Unique, four-layer steel head gaskets are used between the heads and cylinder block.

The LSA’s valves are actuated by a hydraulic roller-type camshaft that delivers a relatively low 0.480-inch (12.2 mm) lift on both the intake and exhaust sides. The low lift – relative to the engine’s high horsepower and torque – and low overlap foster a smoother idle and excellent low-rpm driving characteristics. The wider efficiency band of the Eaton supercharger enabled the use of the low-lift cam to achieve the engine’s performance targets.

Sixth-generation supercharger

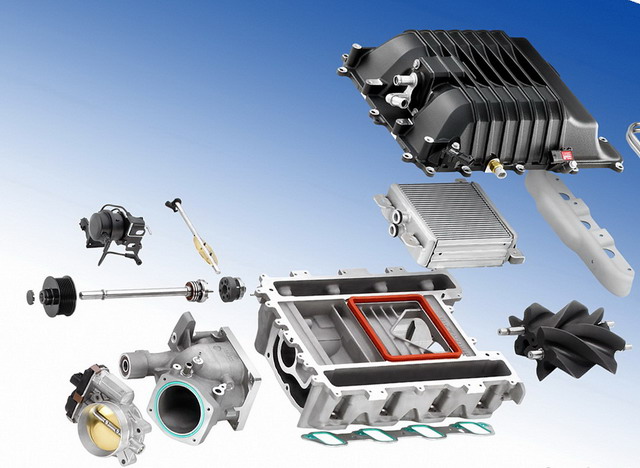

The LSA’s supercharger is the sixth-generation design from Eaton and displaces 1.9 liters. It features a four-lobe rotor design that promotes quieter and more efficient performance, while its large displacement ensures adequate air volume at high rpm. Maximum boost is 9.0 psi (0.62 bar).

The supercharger is an engine-driven air pump that contains a pair of long rotors that are twisted somewhat like pretzel sticks. As they spin, the lobes mesh and incoming air is squeezed between the rotors and pushed under pressure into the engine – forcing more air into the engine that it could draw under natural aspiration. The rotors are driven by a dedicated pulley and eight-rib belt that are connected to a third track on the engine’s crankshaft damper.

Because the pressurized air is hotter than naturally aspirated air, the LSA employs a liquid-to-air charge cooling system to reduce inlet air temperature after it exits the supercharger – reducing the inlet air temperature by up to 70 degrees C (158 degrees F). Cooler air is denser and allows the engine to make the most of its high-pressure air charge.

The charge cooler’s heat exchanger is located atop the supercharger. This “brick,” as it is called by engineers, looks like a small radiator and is housed under an aluminum cover. Pressurized air from the supercharger passes through the exchanger and is cooled on its way to the cylinder heads. The charge cooling system includes a dedicated coolant circuit with a remote-mounted pump and reservoir. Ribs cast into the top of the intercooler housing add strength and promote quietness.

Quiet fuel system and more
The LSA uses a center-feed fuel system that contributes to the engine’s performance and refinement. It introduces fuel at the midpoint of each cylinder bank’s fuel rail, which ensures more even fuel delivery to all the injectors. It also isolates fuel system noise for quieter performance.

Several other features support the LSA’s balance of refinement and power, including:

  • An oil pan-mounted oil cooler to manage engine oil temperature
  • Block-mounted piston squirters to cool the pistons
  • Direct-mounted ignition coils (located on the rocker covers)
  • A large, 87mm electronically controlled throttle body.

The engine also has unique, cast stainless exhaust manifolds that support the airflow capability of the 550-horsepower (410 kW) engine.



SPECIFICATIONS



LSA 6.2L Supercharged V-8

Displacement (cu in / cc):

376 / 6162

Bore & stroke (in / mm):

4.06 / 103.25 x 3.62 / 92 mm

Block material:

cast aluminum

Cylinder head material:

cast aluminum

Valvetrain:

overhead valve, two valves per cylinder

Fuel delivery:

1.9L supercharger with intercooler; sequential fuel injection

Compression ratio:

9.1:1

Horsepower (hp / kW @ rpm):

550 / 410 @ 6100 (estimated)

Torque (lb-ft / Nm @ rpm):

550 / 745 @ 3800 (estimated)

Recommended fuel:

premium required

Maximum engine speed (rpm):

6200
